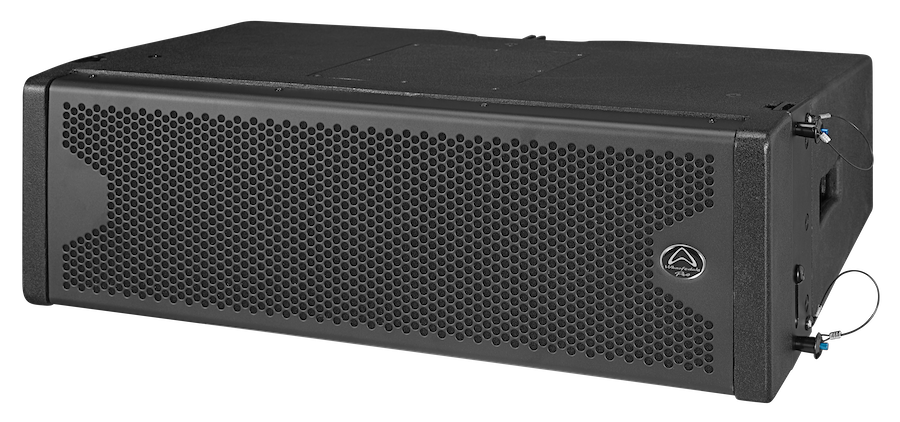

Wharfedale Pro WLA-115 Passive Line Array

The Wharfedale Pro WLA-115 is a passive line array speaker designed for professional audio applications, offering advanced features and robust performance.

Key Features:

• Design: Hybrid Curvature Array
• System Type: 15" Coaxial Passive
• Configuration: Two-Way
• Frequency Response: 55 Hz – 20 kHz (+/-3 dB)
• Frequency Range: 35 Hz – 25 kHz (-10 dB)
• Sensitivity: 101 dB (2.83 V / 1 m)
• Calculated Maximum SPL at 1 m: 133 dB
• System Peak SPL: 139 dB
• Impedance: 8 Ω

Low Frequency Transducer:

• Size: 381 mm / 15"
• Voice Coil Size: 101.6 mm / 4.0"
• Frame Material: Aluminium

High Frequency Transducer:

• Driver Type: Compression Driver
• Coil Size: 72.2 mm / 2.87"
• Exit Size: 38.1 mm / 1.5"
• Diaphragm Material: Composite Titanium / Polyester
• Waveguide Type: EVO-Fold®
• Nominal Coverage (HxV): 100° x 20°

Special Features:

• Copper Demodulating Rings in both LF and HF Units
• Waterproof LF Cone
• Shared High-Performing Ferrite Magnet System Design

Power Handling:

• Continuous: 500 W
• Programme: 1,000 W
• Peak: 2,000 W

Crossover Frequency: 1.2 kHz

Recommended High-Pass Filter: 30 Hz with 18 dB/octave Butterworth

Connectors:

• 2 x speakON compatible

Rigging & Hardware:

• 3 Points for Rigging
• Vertical Splay Angle Range: 0°-5°, 10°, 15°
• Horizontal Splay Angle: 15°

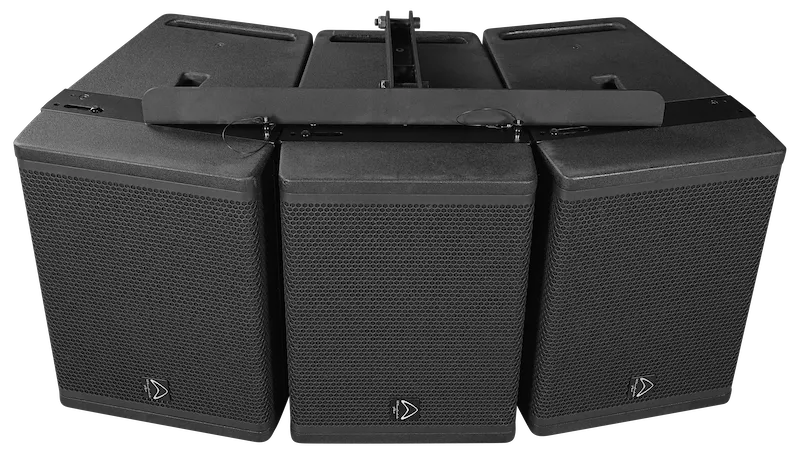

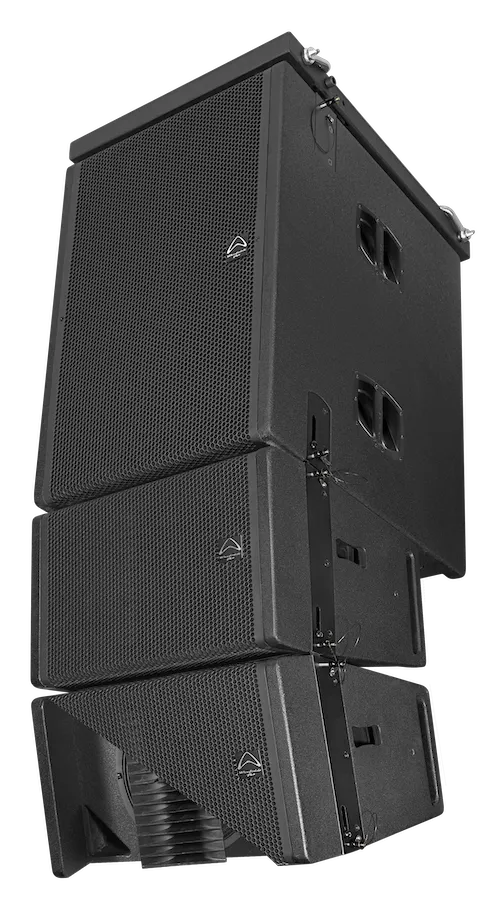

• Optional Accessories: WLA-1 Common Fly Frame
• Hardware: WLA-1 Link
• Stand Pole: Dual Angle -2.5° / +7.5°
• Handles: 2 Side / 2 Back

Enclosure:

• Cabinet Type: Trapezoid
• Material and Finish: 15 mm Plywood / Rhino Rock
• Colour: Black Paint
• Grille Material & Finish: Powder Coated Perforated Steel

Dimensions:

• Unpacked:
  • Height Front: 332 mm / 13.1"
  • Height Rear: 246.4 mm / 9.7"
  • Width: 566 mm / 22.3"
  • Depth: 465 mm / 18.3"
• Packed:
  • Height: 661 mm / 26.0"
  • Width Front: 550 mm / 21.7"
  • Width Rear: 550 mm / 21.7"
  • Depth: 410 mm / 16.7"

Weight:

• Net Weight: 29.4 kg
• Gross Weight: 31.8 kg
