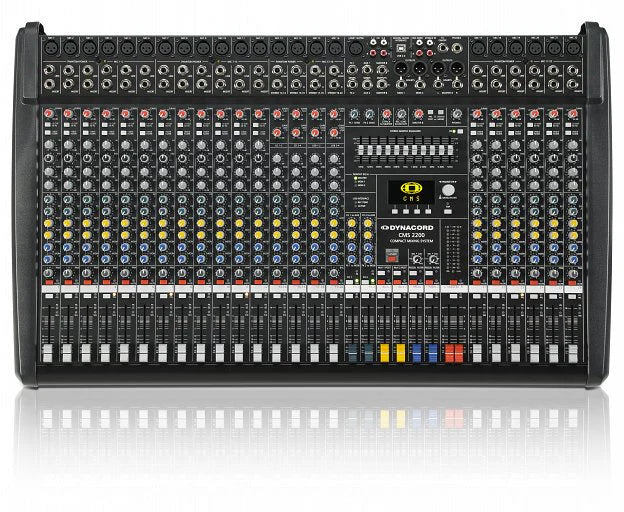

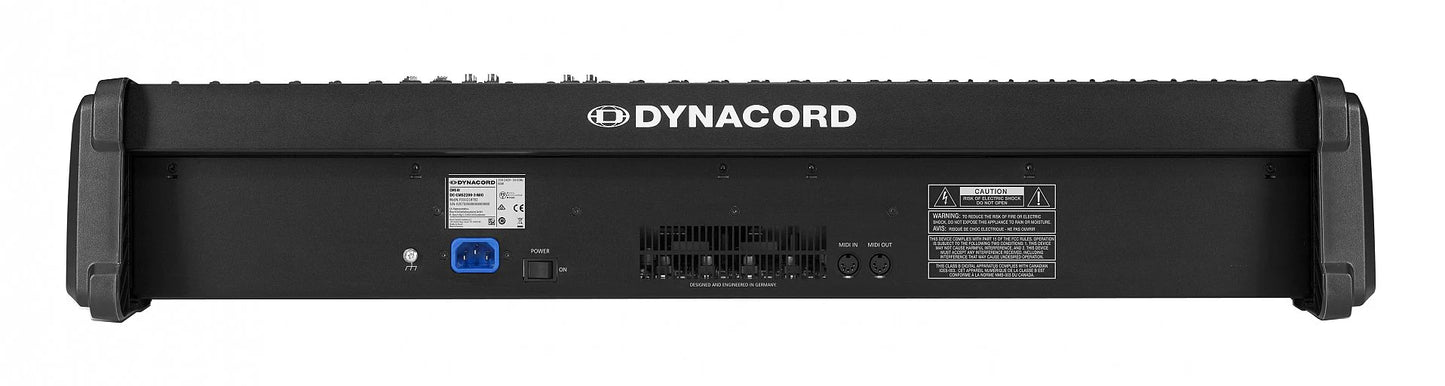

Dynacord CMS 2200-3 22‑channel compact mixer

General Information:

• Type: 22-channel compact mixing system
• Applications: Ideal for small to medium-sized live events, installations, and portable sound systems.
• Channels: 22 input channels (16 mono + 3 stereo)
• Built-in Amplification: Yes, integrated power amplifiers for ease of use.

Audio Inputs:

• Mono Channels: 16 x Mic/Line (XLR/¼" TRS combo jacks)
• Stereo Channels: 3 x Line (XLR/¼" TRS)
• Phantom Power: 48V phantom power on mono channels for condenser microphones.
• Input Gain Control: Each input channel has an individual gain control for precise adjustment.

EQ and Processing:

• Equalization:
  • 3-band EQ on each channel (Low, Mid, High)
  • High-pass filter on each channel (75Hz)
• Built-in Effects Processor: Multiple effects available, including reverb, delay, and modulation effects, with adjustable parameters.
• Digital Signal Processing (DSP): Onboard DSP for enhanced sound processing, including EQ, dynamics control, and more.

Output Section:

• Main Output: 1 x XLR (balanced)
• Auxiliary Outputs: Multiple auxiliary sends (XLR) for monitors, side fills, etc.
• Headphone Output: 1 x ¼" TRS jack
• Master Output Level Control: Main output level control for overall volume adjustment.

Power Amplification:

• Built-in Amplifiers:
  • The CMS 2200-3 comes with built-in amplification for powering passive loudspeakers, typically in combination with a small or medium sound reinforcement system.
• Output Power: Integrated power amplifier for driving a range of loudspeakers.

Control Features:

• Channel Faders: Individual faders for each input channel for volume control.
• Master Fader: A dedicated master fader to control overall output level.
• Mute/Solo: Each channel has a mute and solo function for monitoring and control.
• Peak Indicators: LED indicators on each channel to signal potential clipping or overload.

Connectivity:

• Balanced XLR Outputs for main and auxiliary output feeds.
• Headphone Output with dedicated volume control.
• USB Port: For digital recording and playback (depending on model and configuration).

Build and Design:

• Enclosure: Robust, portable design, built for both live sound applications and fixed installations.
• Rack-Mountable: Compact and rack-mountable, typically a 19-inch rack format.
• Cooling: Ventilation system to maintain proper cooling during extended use, ensuring reliable performance in high-temperature environments.

Additional Features:

• Portable and Compact: Despite being a 22-channel mixer, the CMS 2200-3 is designed to be compact and easy to transport, making it ideal for mobile setups.
• Rugged Design: Built to withstand the rigors of touring and on-location use, with a durable chassis and components.

Dimensions and Weight:

• Dimensions: 483 mm (W) x 150 mm (H) x 330 mm (D)
• Weight: Approx. 10-15 kg (depending on specific configuration)

Applications:

• Live Sound Reinforcement: Suitable for small-to-medium-sized live performances, conferences, and events.
• Portable Sound Systems: Ideal for mobile sound reinforcement applications, with integrated amplification and mixing in a compact format.
• Installations: Can be used in churches, theaters, or venues requiring a flexible, all-in-one sound system.

Conclusion:

The dBTechnologies CMS 2200-3 is a versatile and compact 22-channel mixing system that integrates essential features for live sound applications. Its built-in amplification, EQ controls, effects processing, and ease of use make it suitable for a variety of audio environments.
